1/100 Thunderbolt version Zaku Tank scratch build.

by


1/100 Thunderbolt version Zaku Tank scratch build.
Introduced at the Yoshimoto plastic model department model computer 2022 semi final: full info, images and credits

I was surprised because I didn’t think it would go all the way to the semi final.
It’s the first all-full scratch in my life

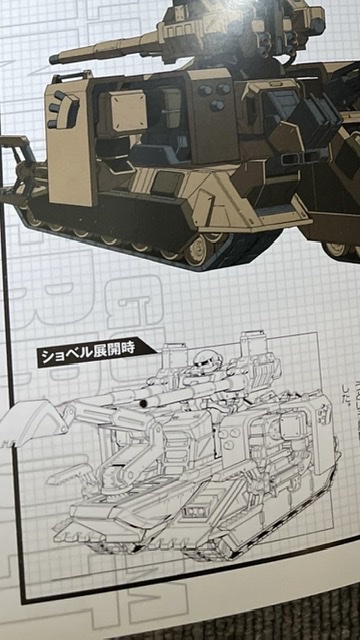

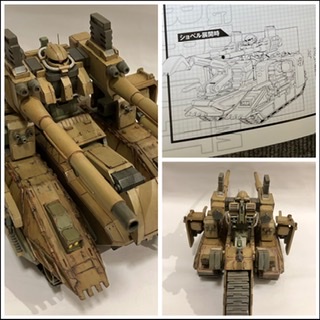

I fell in love with the design of the Thunderbolt version of the Zakutank. After looking at the illustrations and setting materials, I finished with plastic ties without using plastic plates, plastic pipes, plastic rods, poly putty, or epoxy putty.

I’m glad I was able to complete the usual prospective departure and the difficult track
The production period is about 420 hours in 105 days.

I don’t draw basic blueprints
The blueprint is in my head. First of all, it would be nice to be able to use only the upper body of the 1/144 Zaku, and as a result of starting to scratch the lower body with a plastic plate with light glue, I made a mistake in the size and the lower body became big and the upper body became unusable.
If I were going to destroy it, I thought it would be better to scratch the upper body as well, so I made it into a 1/100 Zakutank.

Please see the story because the work process cannot be posted due to the convenience of the photo.

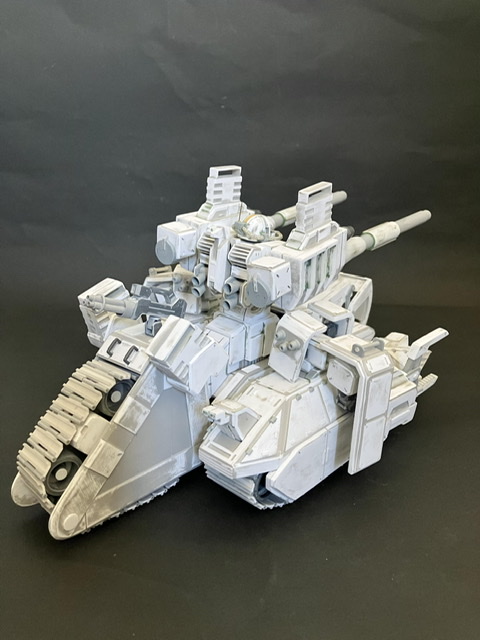

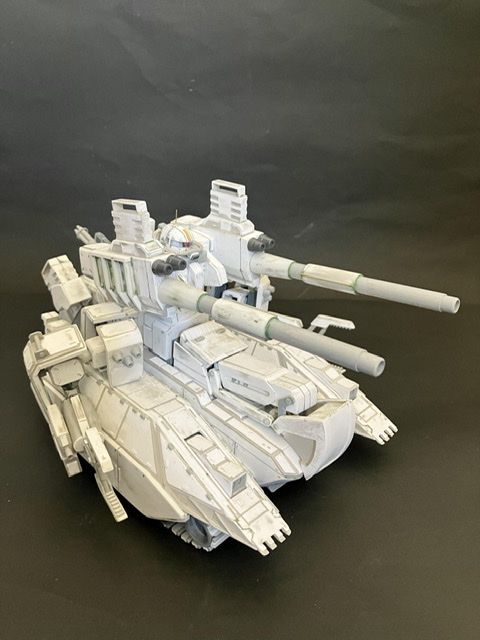

This is a photo after finishing the final detail up before painting and checking for scratches.

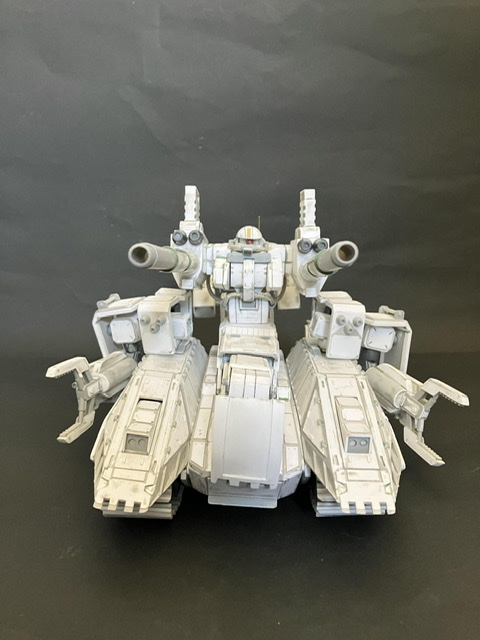

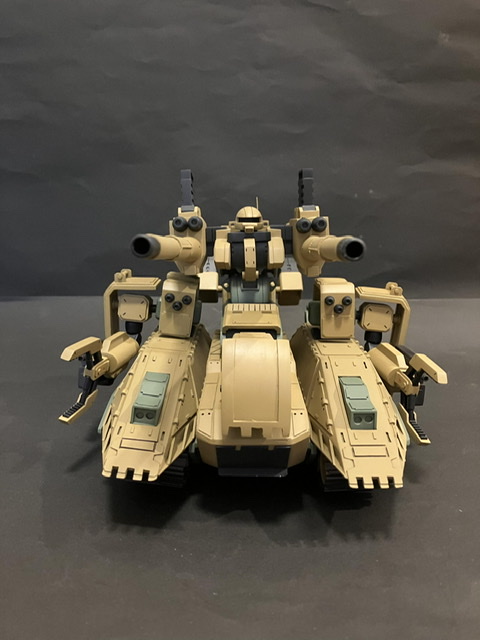

Shiny Zakutank before weathering

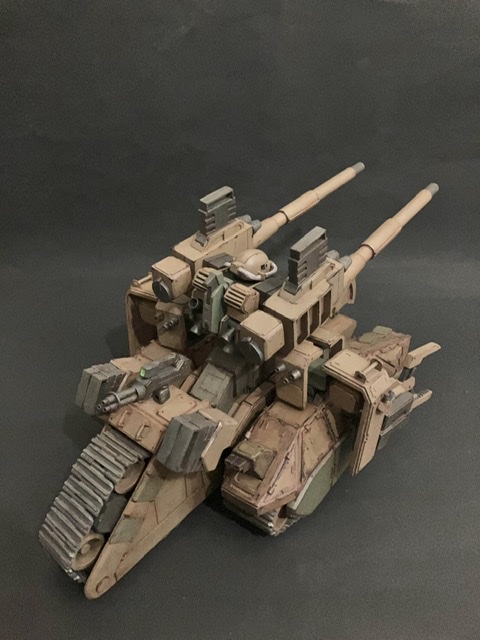

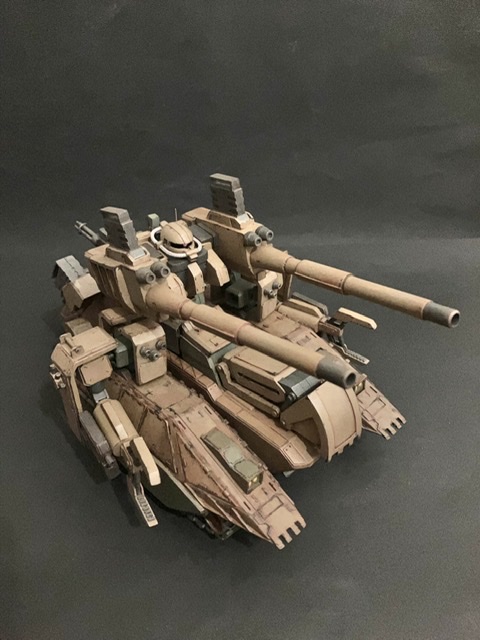

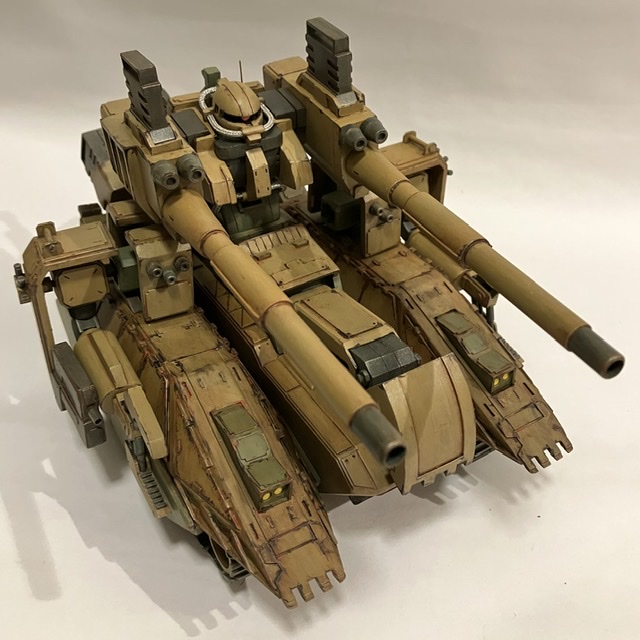

Weathering after basic painting
This time, for the first time, I used Creos’ weathering color to give it a sense of history.
First, filtering, washing, and rust painting. Finally, I filtered sand dust again and added many layers of dirt to change the color before weathering.

All weathering is not painted in the same way
Separate the upper body, which is hard to get scratched, and the lower body, which is easy to get scratched.
The lower part of the body often rubs against trees and rocks, so the base naturally comes out, touches the air, and rusts. The rusted area will be scratched and the base will come out again, and so on.
It’s easy to understand if you enlarge it, but I used 3 colors and silver just for the rust.

Since there is a possibility that the size will be submitted to the contest, I will keep it within 300mm x 300mm.

Filtering is applied mainly around the caterpillar where a lot of sand and dust is covered after rust painting.

The photo looks a little red.

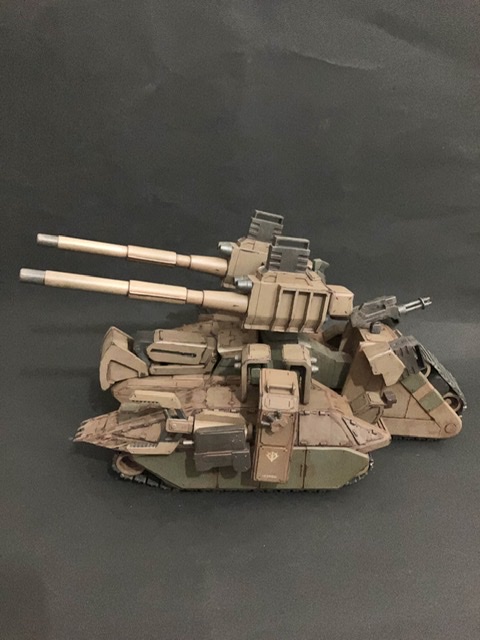

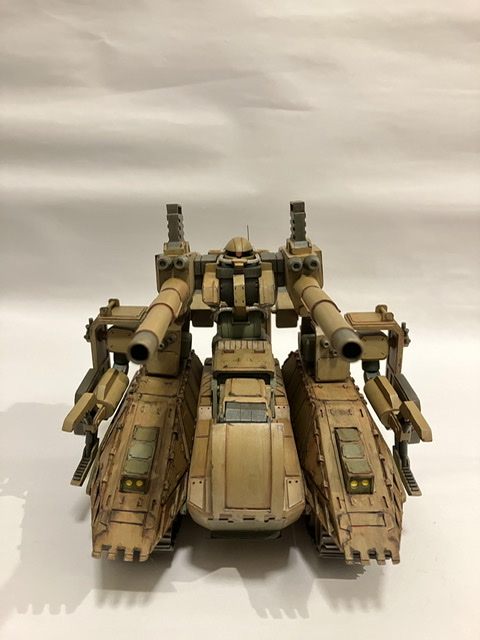

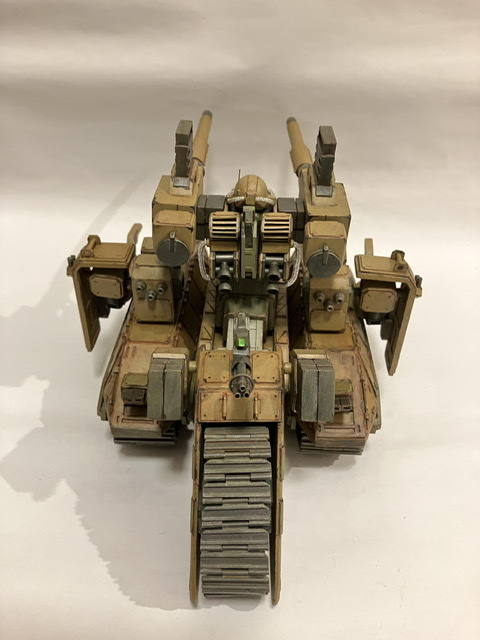

I used a black and white background to make the outline easier to understand on the black background, and divided it into the actual color on the white background

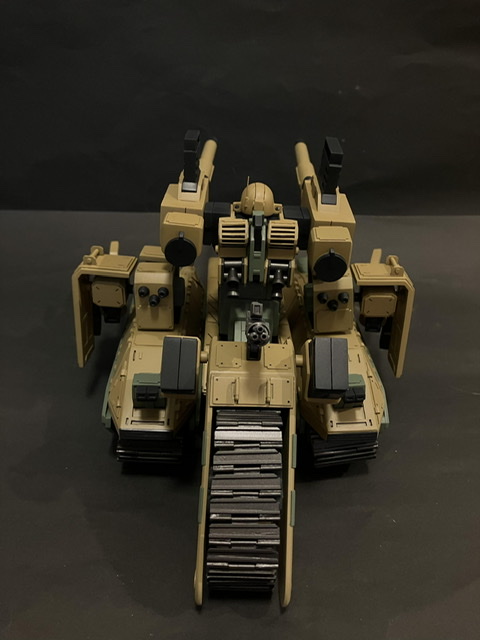

There is a lot of details in the rear part and the details are improved

The only kit used for this Zakutank is the Builders Powered Arm Powers for the base of the machine gun on the rear caterpillar and part of the joints.

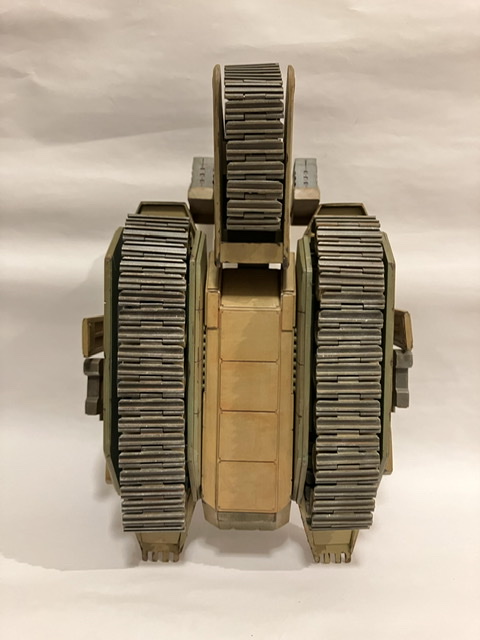

The details on the back of the caterpillar on the bottom have been improved a little.

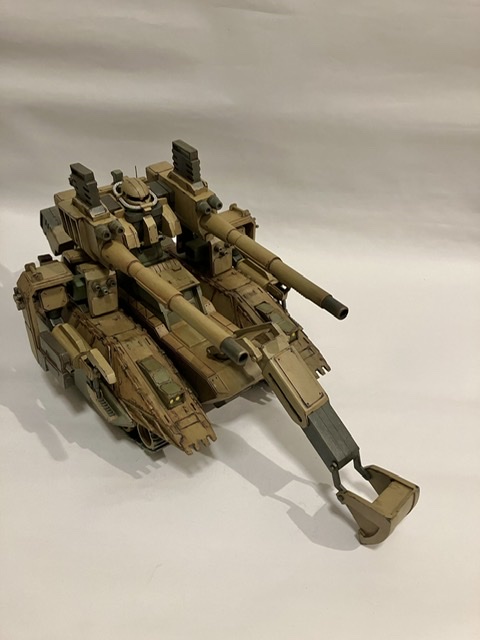

The arm is also movable

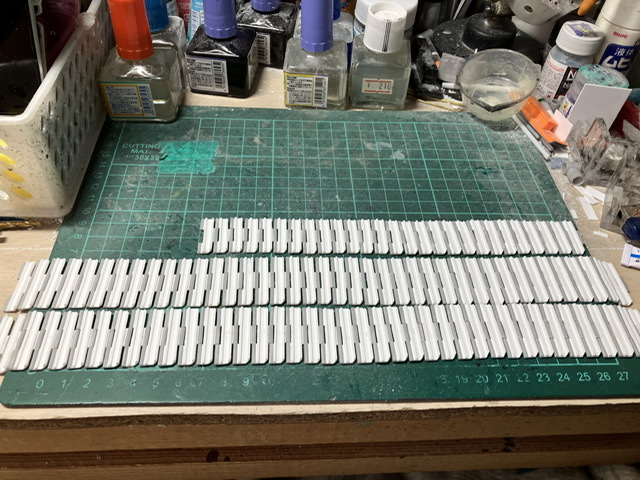

The tracks are also fully scratched by hand.
Moreover, articulated tracks
The total number of tracks is 107. After that, when I adjusted the length of the track, it was a little tight, so I added 2 more tracks, and now I have 109 tracks

It takes about 30 to 40% of the total 100 hours just for the wheels and tracks.

Thanks to that, if you push it with your hand, the wheels and tracks will turn.
I also posted a video of the tracks spinning on Twitter
Please take a look if you like

model computer 2022
in semi-final
I was introduced to the Thunderbolt version of the Zakutank.
It’s from 9:04:30
It seems that the tracks are made with an injection molding machine~ I’ve never built a tank, so I didn’t know what was normal.
The first eyeball wheel, the crawler belt also rotates

Work by 蒼き鷹
